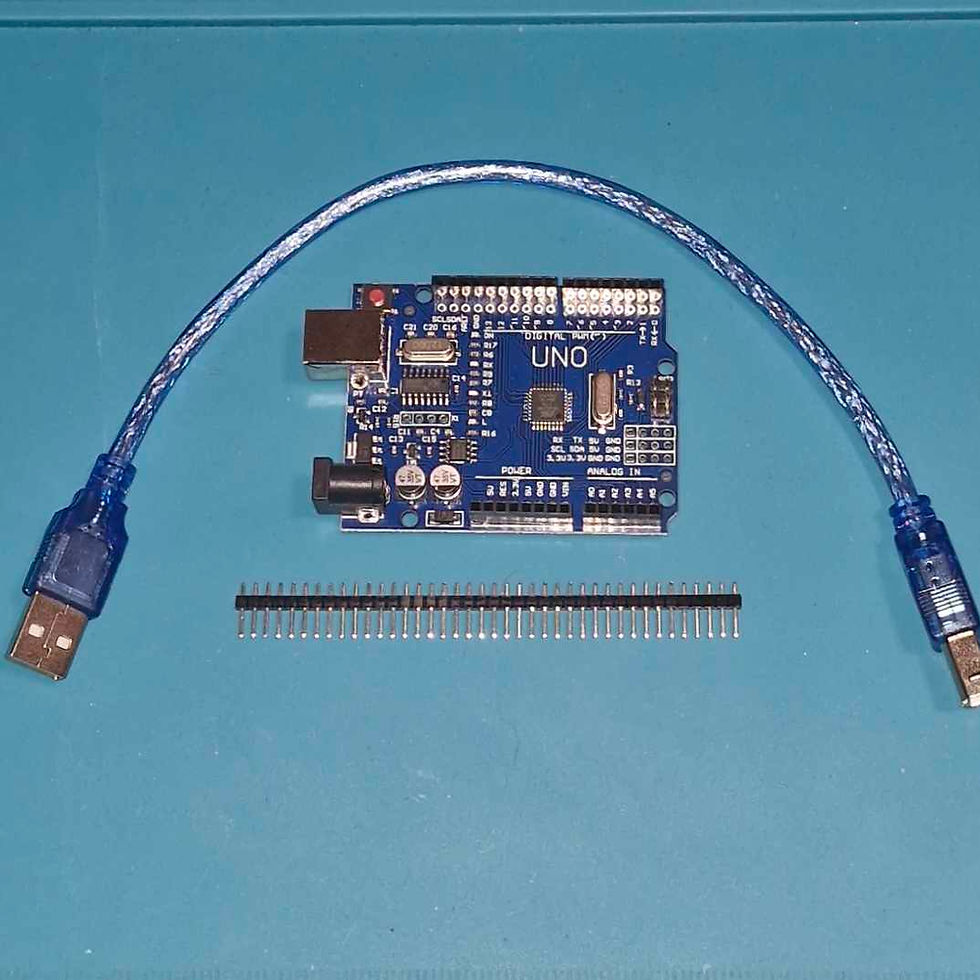

Third-Party Arduino UNO (CH340 ATMega328P Chip)
Overview:
The Robotlinking Controller Board with CH340 Chip is a versatile and cost-effective microcontroller development board, designed to be fully compatible with Arduino Uno R3. Featuring the reliable CH340 USB-to-serial chip, this board offers seamless communication and programming via USB, making it ideal for various DIY electronics, robotics, and IoT projects. Its compatibility with the Arduino ecosystem makes it a perfect option for both beginners and experienced developers looking for an affordable alternative.

Third-Party Arduino UNO (CH340 ATMega328P Chip)

$4.80Price

  • Key Features:

    • Microcontroller: ATmega328P, an 8-bit AVR microcontroller known for its balance of power and ease of use.



    • USB-to-Serial Chip: CH340 chip provides stable and efficient USB communication, acting as the interface between the microcontroller and your computer.



    • Operating Voltage: 5V.



    • Input Voltage (recommended): 7-12V, offering flexible power options depending on your project needs.



    • Digital I/O Pins: 14 (6 of which support PWM output), ideal for controlling various electronic components such as LEDs, motors, and sensors.



    • Analog Input Pins: 6, enabling the board to interface with analog sensors for reading environmental data.



    • Flash Memory: 32 KB (0.5 KB is used by the bootloader), providing enough space for most development projects.



    • SRAM: 2 KB, sufficient for handling real-time data processing.



    • EEPROM: 1 KB for non-volatile data storage, allowing you to store important information that persists even when the board is powered off.



    • Clock Speed: 16 MHz, ensuring reliable performance for most standard applications.





    Connectivity:

    • USB-B Port: Used for power supply and programming, with easy connection to a PC or Mac.
    • ICSP Header: In-Circuit Serial Programming allows direct programming of the microcontroller.
    • Power Jack: External power supply option for longer-running projects.





    Compatibility:
    This Robotlinking Controller Board is fully compatible with the Arduino IDE and supports all libraries and software designed for the Arduino Uno R3. It works with Windows, macOS, and Linux, providing developers the flexibility to use the platform of their choice. The board can be used with various Arduino shields, further expanding its functionality.





    Applications:
    Perfect for a wide range of electronic projects, including:

    • DIY Electronics: Ideal for hobbyists who need a reliable, cost-effective board for small projects.



    • Robotics: Suitable for building robotic systems that require precise control over motors and sensors.



    • IoT (Internet of Things): Can be used in smart devices and IoT systems for sensing and controlling real-world processes.



    • Educational Projects: A great learning tool for students and makers who are just starting out with programming and electronics.



    Dimensions and Weight:

    • Dimensions: Standard Arduino Uno footprint (approximately 68.6 mm x 53.4 mm).



    • Weight: Lightweight, approximately 25g.
