Overview:
The 12x12x7.3mm Tactile Momentary Push Button Switch is widely used in electronics projects to provide user input. This compact, momentary switch operates when pressed, returning to its original position when released, and is ideal for integration in microcontroller-based projects such as those using Arduino.
Tactile Momentary Push Button Switch
$999.00Price
Key Features:
- Size: 12x12x7.3 mm.
- Operation: Momentary (push-to-make), meaning the circuit is closed only while the button is pressed.
- Mounting Type: Through-hole, making it easy to integrate into breadboards and PCBs.
- Operating Voltage: 12V DC.
- Operating Current: 50mA, suitable for low-power electronic circuits.
- Durability: Rated for up to 300,000 cycles, ensuring long-lasting performance.

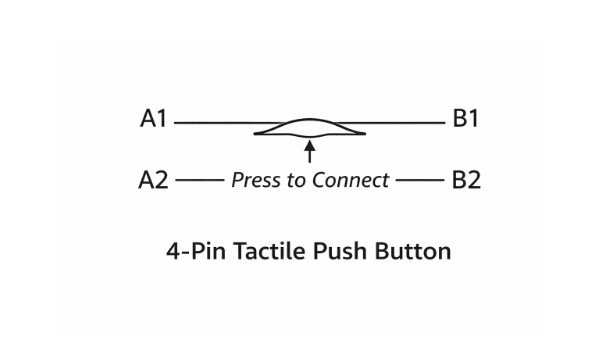

- Pins: 4-terminal normally open (NO) configuration.
Specifications:
- Contact Material: Aluminum alloy.
- Contact Resistance: 50mΩ.
- Insulation Resistance: 100MΩ.
- Operation Force: Around 3-5N.
- Operating Temperature: -20°C to +70°C.
- Stroke: 1.05mm for tactile feedback.
Applications:
- Microcontroller Projects: Ideal for use with Arduino and other development boards for input buttons.
- Prototyping: Can be easily mounted on solderless breadboards for testing circuits.
- Consumer Electronics: Used in buttons for devices like printers, monitors, and other control systems.
- DIY Electronics: Perfect for hobby projects involving user input interfaces.
